Download Technical Datasheet

Galactus Pneumatic Manipulators are designed to move operator-centered loads within the work area with minimum effort. It balances the weight of the load, allowing the operator to carry the load quickly and safely.

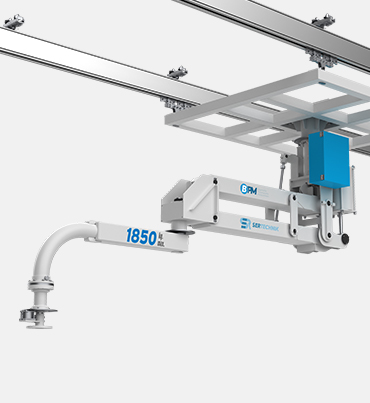

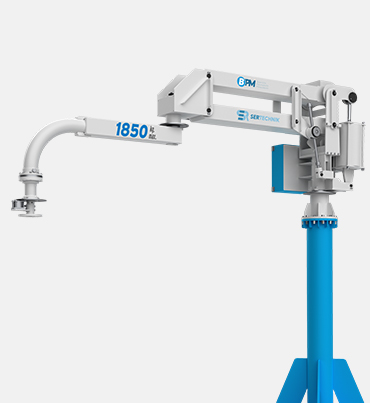

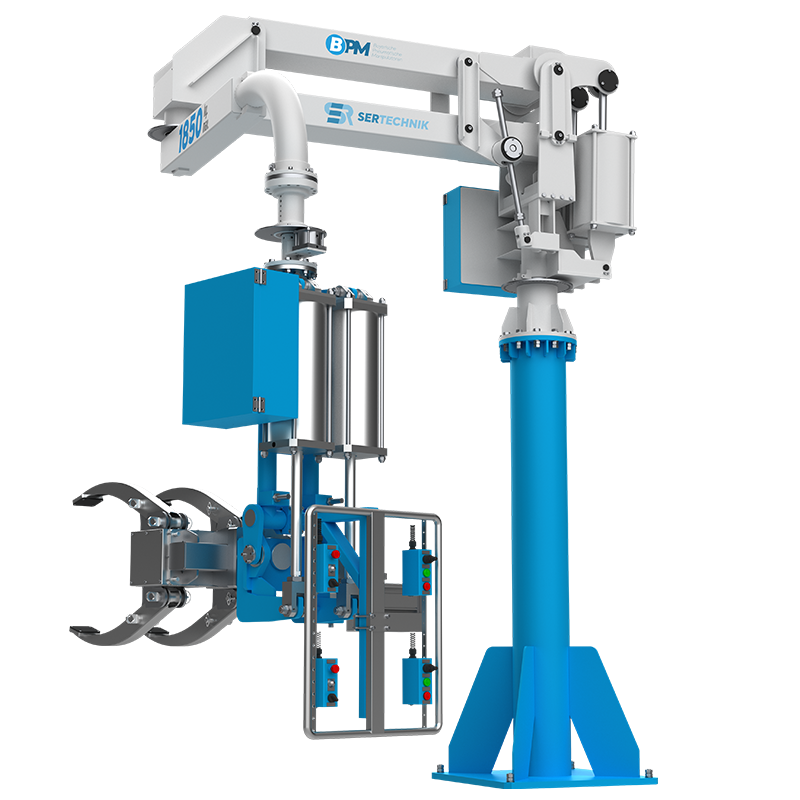

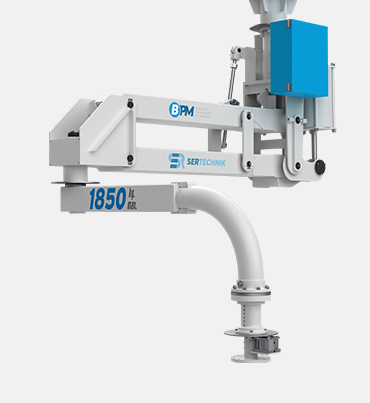

Manipulators, either floor mounted or ceiling mounted. Galactus is equipped with special gripping tools which are particularly suitable to manually handle center offset loads in any direction, in a weightless condition. The manipulator, which consists of two arms, has a total of two brakes on the arm rotation axis. It’s versatile structure allows it to fit in any working environment.

Works with dry, filtrated (40 μm) and oil free compressed air (min. 0.7/0.8 MPa).

1.850 kg max. weight capacity. 5.000 mm max. radius. 3.000 mm vertical lift.
995 nl/min max. air consumption.
